Checkpoint+ SL 5
The Checkpoint+ SL 5 is an electric gravel bike designed for long-distance riding, featuring a quiet TQ HPR60 motor and a 360Wh battery for extended range. Built with a 500 Series OCLV Carbon frame and endurance geometry, it ensures rider comfort during the long haul. This model comes equipped with durable alloy wheels and a 12-speed Shimano GRX 1x drivetrain, making it ready to roll on any gravel adventure.
or with
View all locations
Product images may vary slightly from final specifications.
Need to Know
KEY FEATURES
PERFECT FOR
Why we like the Trek Checkpoint+ SL 5

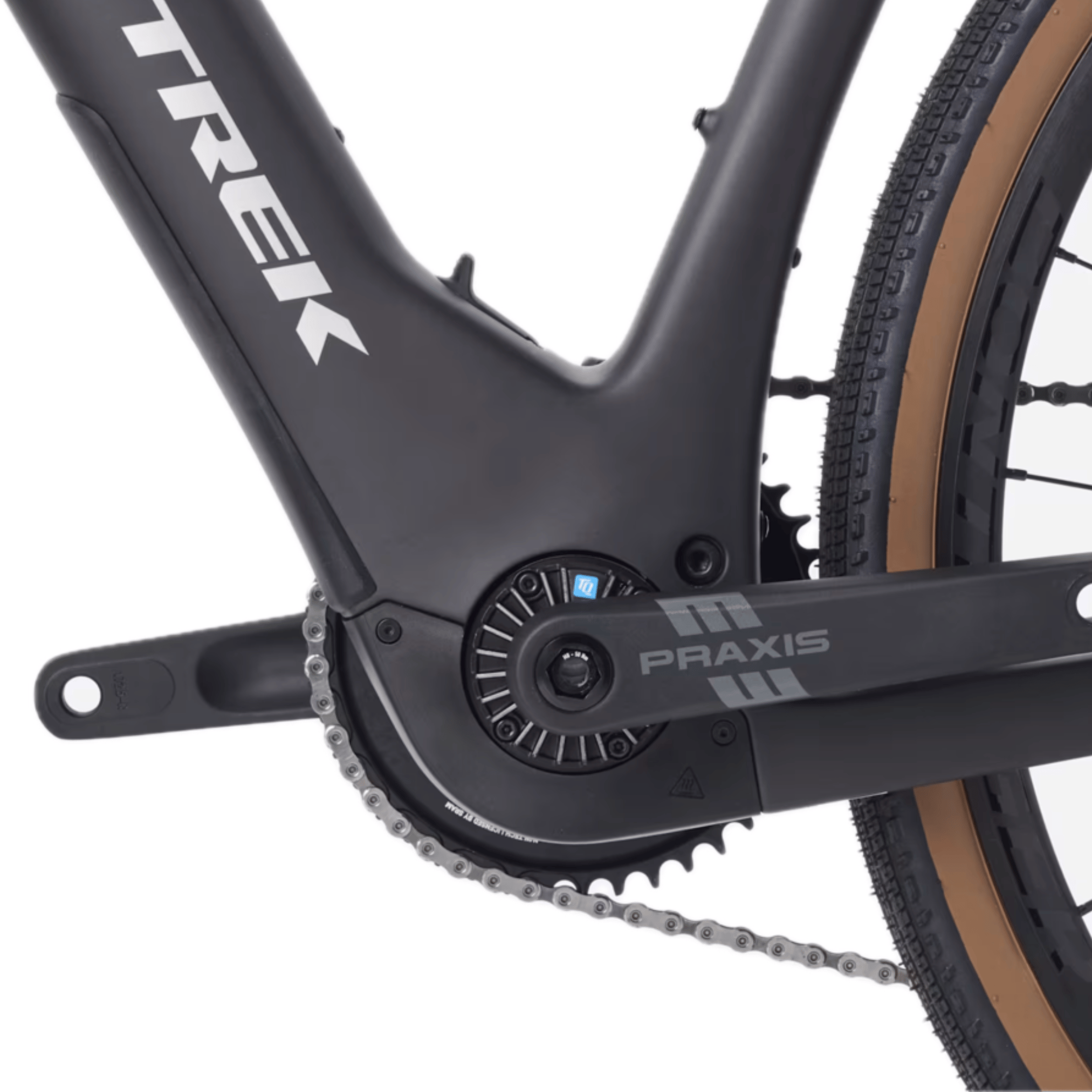

Discrete and Powerful TQ Motor
The TQ-HPR60 motor provides a smooth and quiet boost up to 28mph, offering 60 Nm of torque and 300 watts of continuous power.

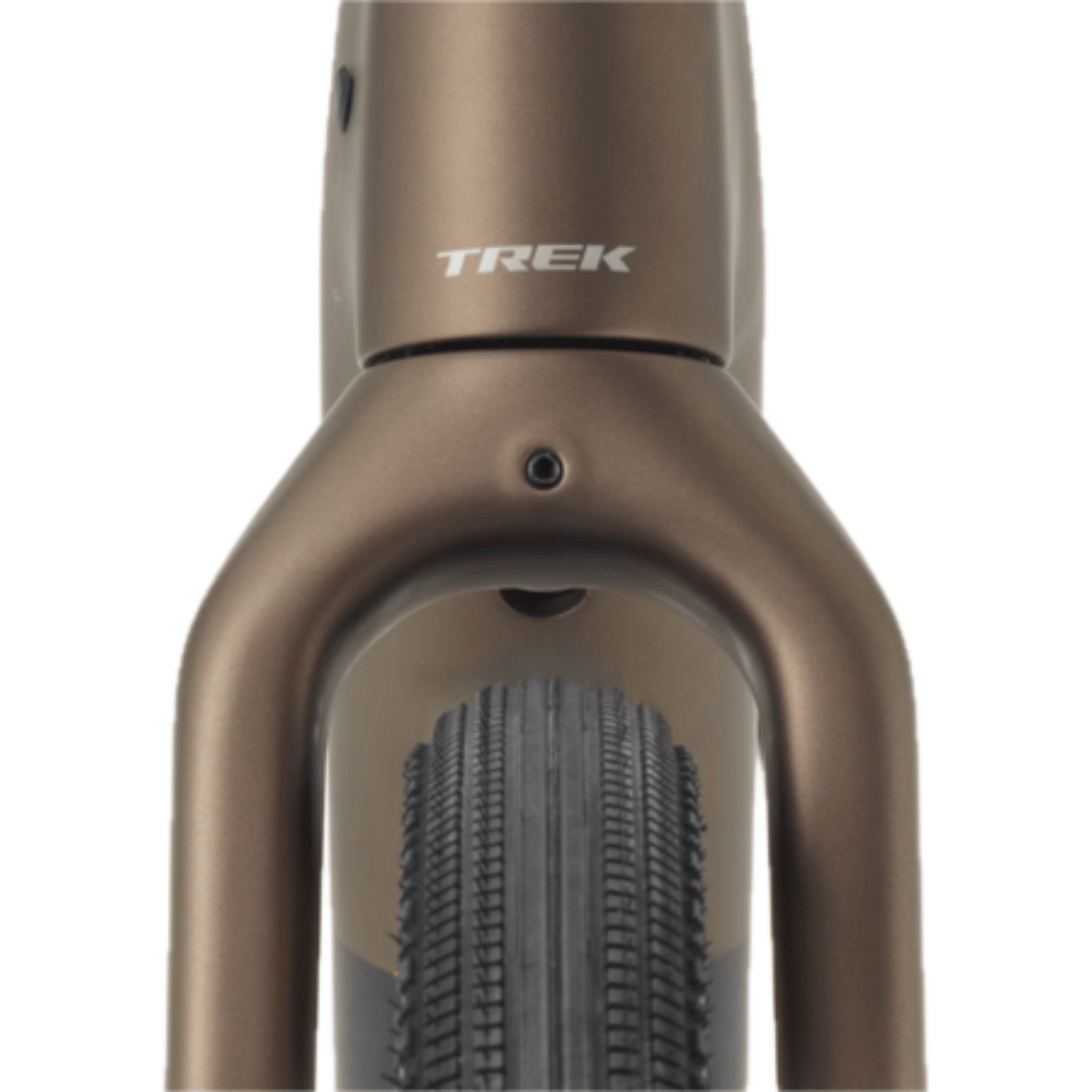

Integrated Carbon Fork and Mounts
The Checkpoint full carbon fork features a tapered carbon steerer and includes integrated fender and triple rack mounts for versatile gear carrying.

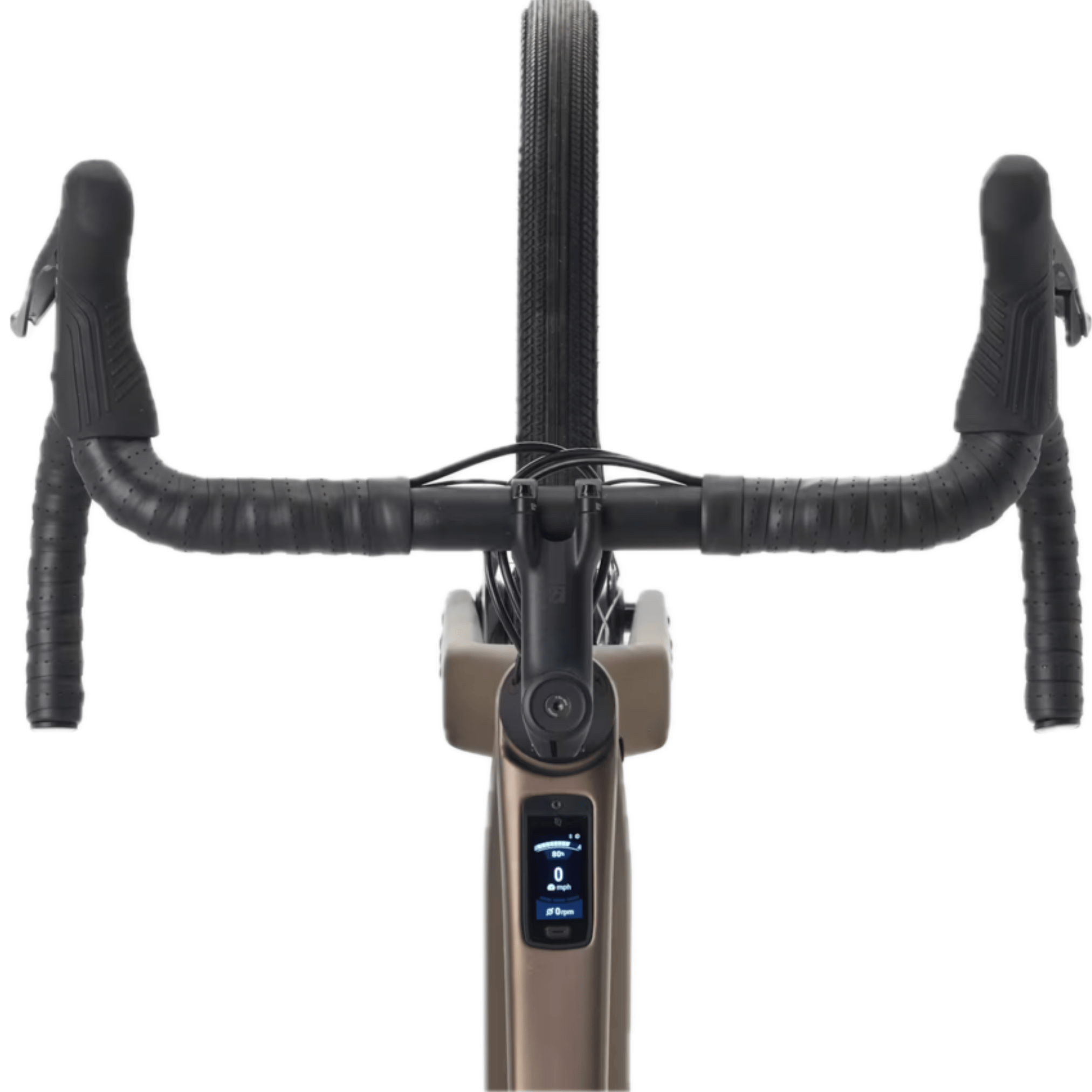

Integrated TQ Smart Tech
A TQ color LED display provides connectivity via Bluetooth and ANT+, paired with a 360Wh battery and a TQ 4A charger.
Specifications
Frame Material
500 Series OCLV Carbon
Shifter
Shimano GRX RX820, 12 speed
Rear Derailleur
Shimano GRX RX822, 51T max cog
Front Derailleur
Crankset
Praxis Alloy, 165mm - 172.5mm
Chain
Shimano XT M8100, 12 speed
Cassette
Shimano XT M8200 or M8100, 10-51, 12 speed
Brakeset
Flat Mount Disc
Rotors
Shimano CL800, centerlock, 160mm
Bottom Bracket
Cockpit
Headset
Tapered
Handlebar
Bontrager Elite Gravel, alloy, 40cm - 46cm width
Stem
Bontrager Elite, 31.8mm, 70mm - 100mm length
Saddle
Verse Short Comp, steel rails, 145mm width
Seatpost
Bontrager carbon, 27.2mm, 8mm offset, 330mm length
Wheels
Wheelset
Bontrager Paradigm Comp 25, Tubeless Ready
Front Axle
12x100mm chamfered thru axle
Rear Axle
142x12mm chamfered thru axle
Hubs
100x12mm front / 142x12 thru axle rear
Tires
Bontrager Girona Pro, Tubeless Ready, 700x42mm
Tire Clearance
50mm without fenders, 42mm with fenders
