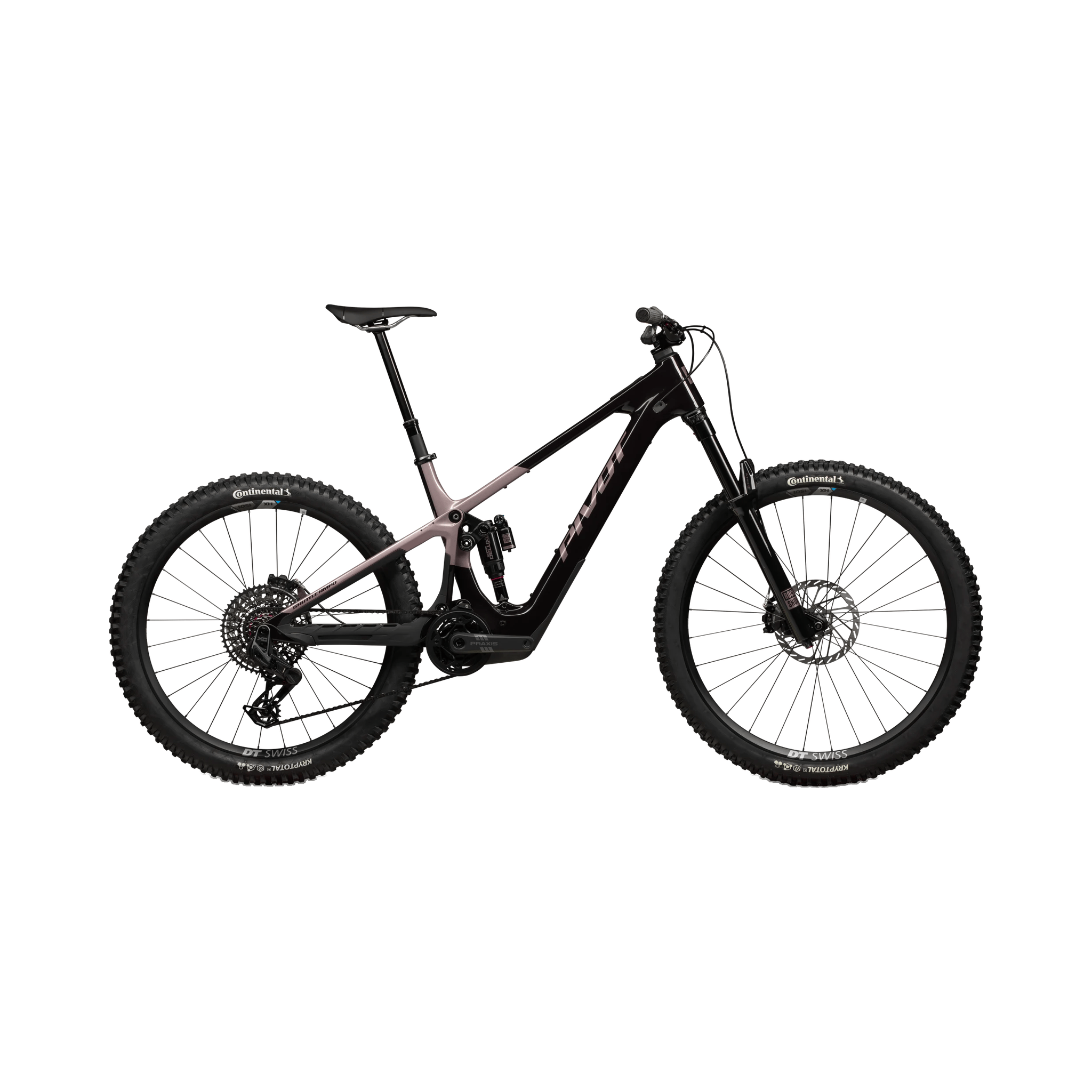

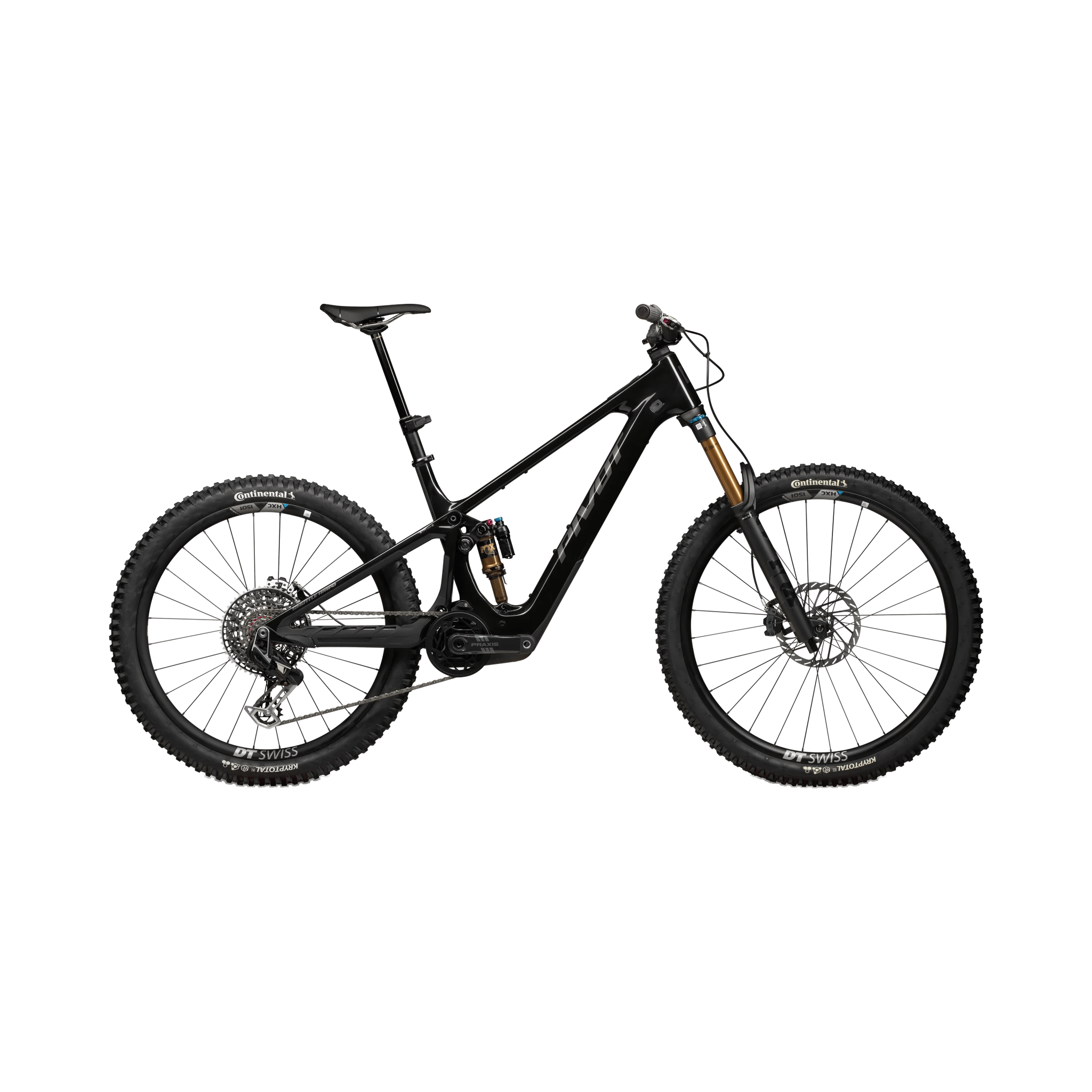

Shuttle AMP'd Pro X0 Eagle T-Type
The Shuttle AMP'd Pro X0 Eagle Transmission is Pivot's full-send answer to riders who don't dial anything back. Built around an Avinox M2S drive unit and an 800Wh battery, it pairs 1300W of peak power with dw-link suspension that's been refined over two decades to keep the rear wheel tracking true. With 160mm up front and 150mm out back on a mixed-wheel chassis, it's tuned to stay composed at speed and playful everywhere else. SRAM's X0 Eagle Transmission hardwires directly into the Avinox system, so shifting stays smooth and confident even under full load.
or with
View all locations
Product images may vary slightly from final specifications.
Need to Know
KEY FEATURES
PERFECT FOR
Why we like the Pivot Shuttle AMP'd Pro X0 Eagle T-Type

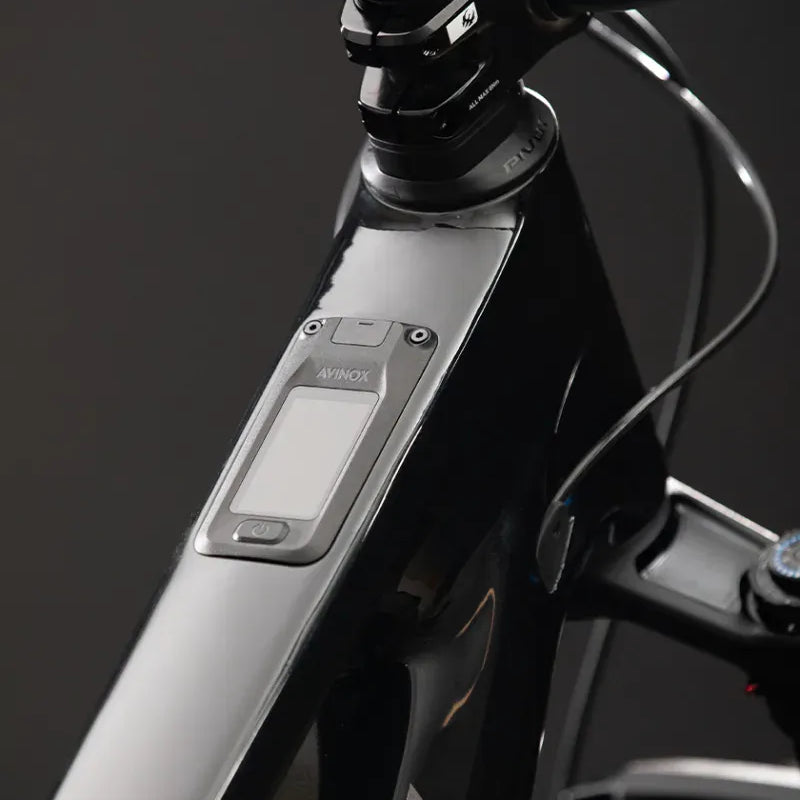

Touchscreen Control Unit
The color OLED touchscreen is both a full-featured cycling computer and a central control unit, recording ride data and allowing complete management of the drive unit. It places ride modes, system data and tuning controls exactly where you need them, and remains fully functional with wet fingers or gloves. Clear, intuitive and positioned for quick access, it keeps adjustments seamless without breaking concentration on the trail.

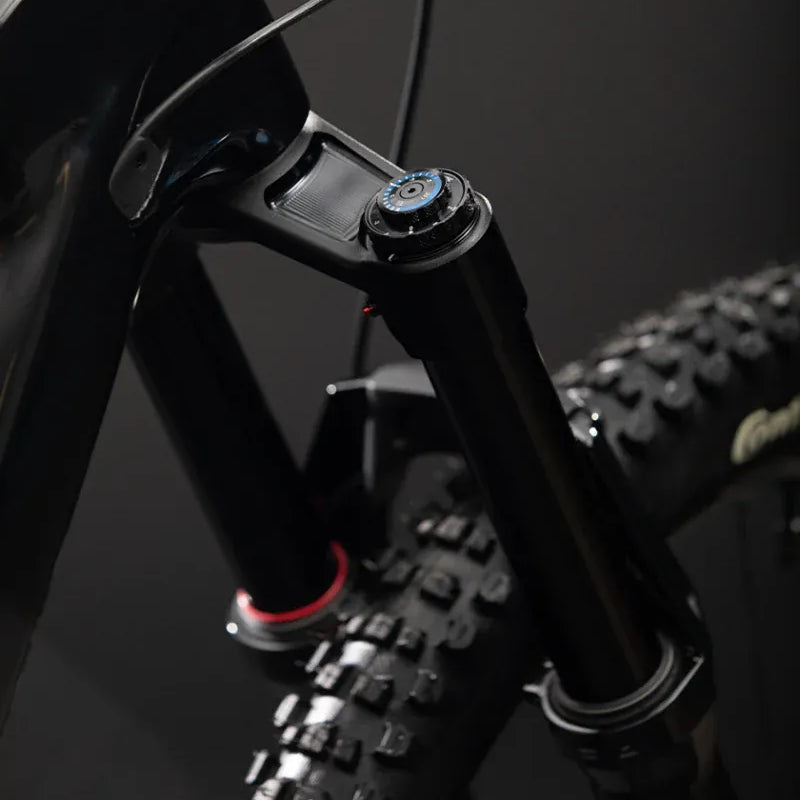

New RockShox ZEB & Super Deluxe
The new ZEB Ultimate fork and Super Deluxe shock bring innovations like the Linear XL air spring, ButterWagonTech and Adjustable Bottom Out to match the all-out, no filter character of the AMP’d.

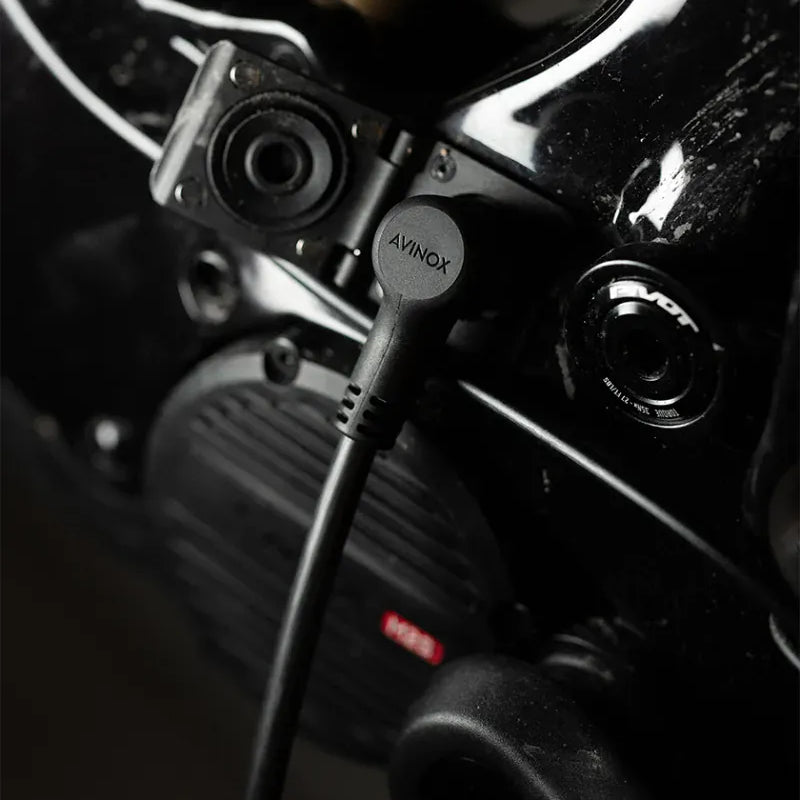

Battery System and Fast Charger
An 800Wh battery delivers extended range in a compact cross-section design that allows for slimmer frame profiles and improved integration. At 3.74kg, the system balances capacity with packaging efficiency. The Avinox 508W fast charger, standard on Pro and Team builds, charges the battery at the speed of a snack break for longer days and quicker turnarounds.
The Breakdown | Stats
Frame
Carbon Fibre
Fork
RockShox Zeb Ultimate
Front Travel
160mm
Shock
RockShox Super Deluxe Ultimate
Rear Travel
150mm
Drivetrain
Shifter
Sram X0 Eagle Transmission 12-Speed
Rear Derailleur
Sram X0 Eagle Flattop 12-Speed
Crankset
Praxis Alloy eCranks E-MTB, 34t, 155mm
Chain
Sram X0 Eagle Transmission 12-Speed
Cassette
Sram GX 1275 Eagle Transmission 10-52t
Brakeset
Sram Maven Silver 4-piston
Rotors
Sram HS2 6-Bolt, 200mm front and rear
Bottom bracket
Cockpit
Headset
Pivot Precision Sealed Cartridge
Handlebar
Phoenix Team Carbon, 20mm Rise 760mm (XS), 20mm Rise 780mm (SM), 35mm Rise 780mm (MD-XL)
Stem
Phoenix Team Enduro V2, 32mm (XS), 40mm (SM-LG), 50mm (XL)
Saddle
Pivot Pro E-Bike
Dropper Post
OneUp Dropper V3, 150mm (XS-SM), 180mm (MD), 210mm (LG), 240mm (XL)
Dropper Lever
Grips
Phoenix Factory Lock-On
Wheels
Wheelset
DT Swiss Hybrid HX1501
Front Axle
15x110mm
Rear Axle
12x157mm
Hubs
Tires
Continental Kryptotal-F 29" x 2.4" Super Soft Compound Enduro Casing (front), Continental Kryptotal-R 27.5" x 2.6" Soft Compound Enduro Casing (rear)
E-Specs
Battery
Avinox 800Wh
Motor
Avinox M2S
Display
Full-color OLED touchscreen
