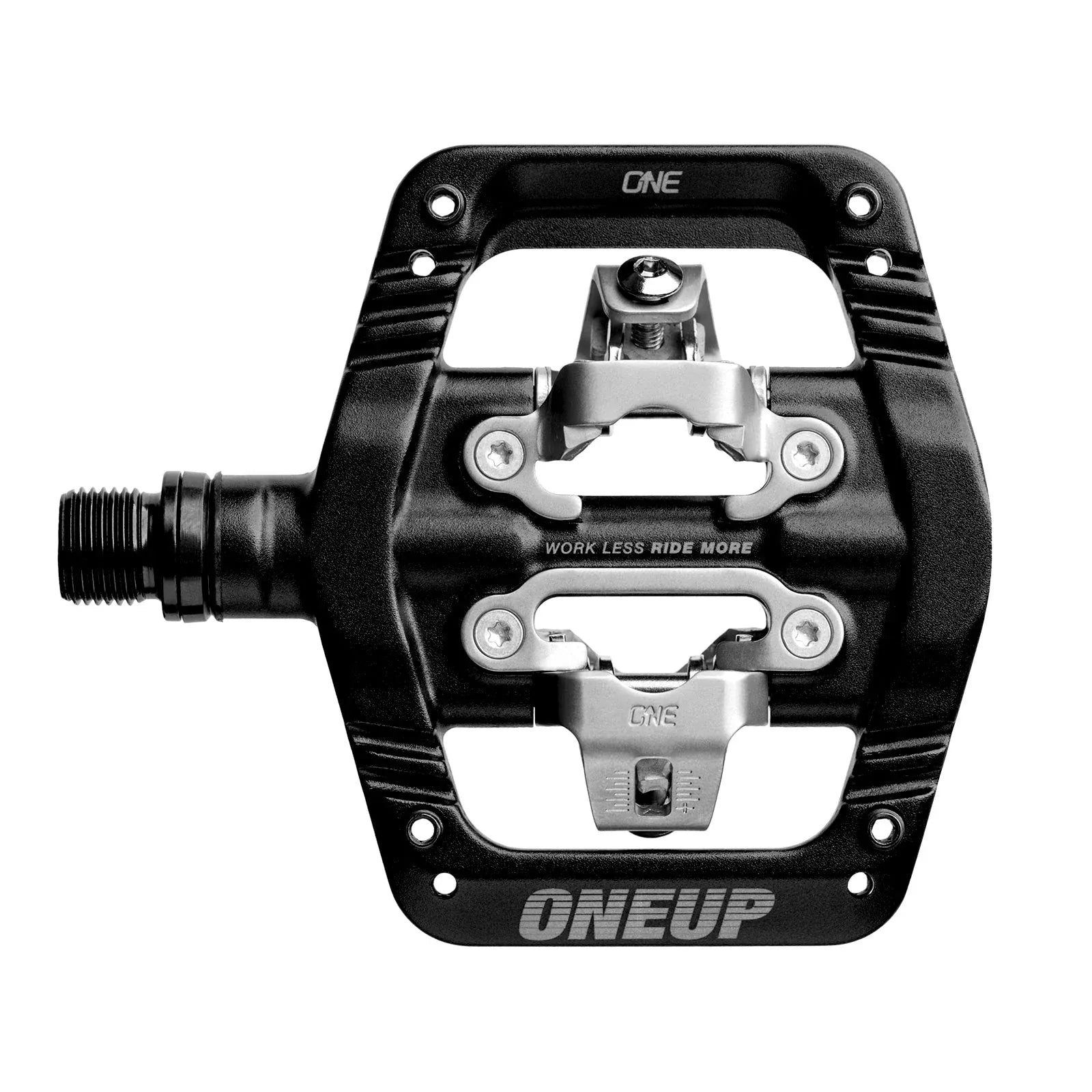

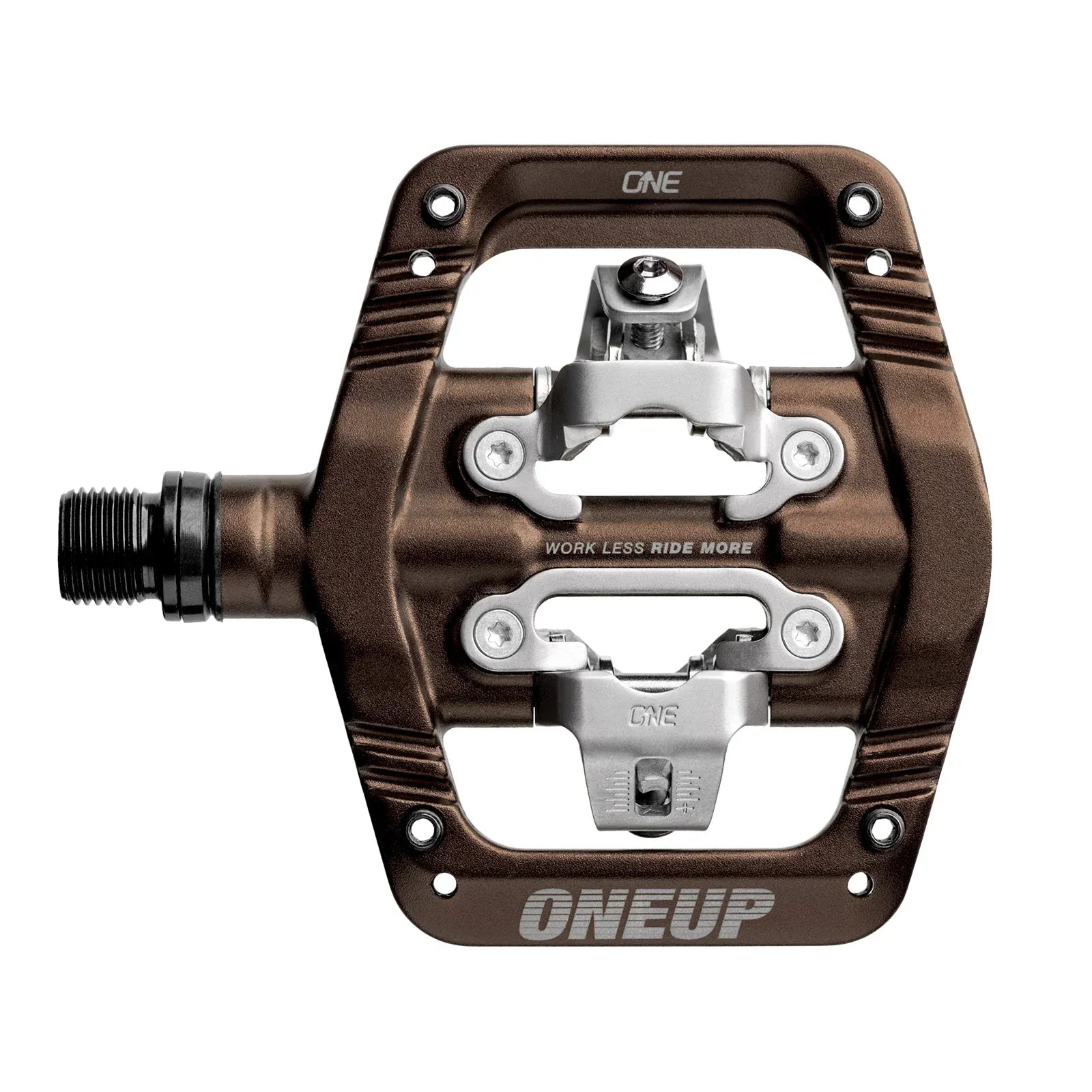

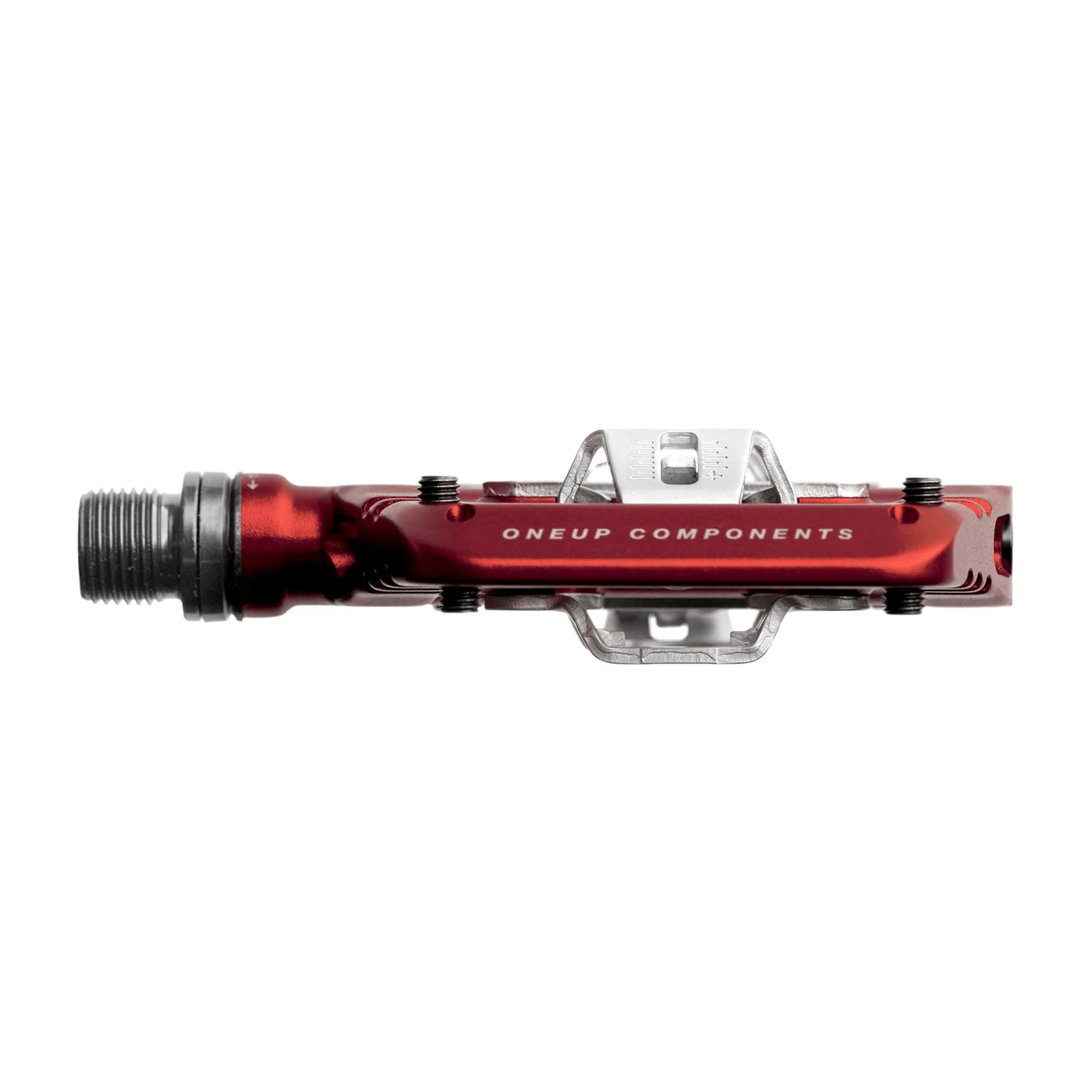

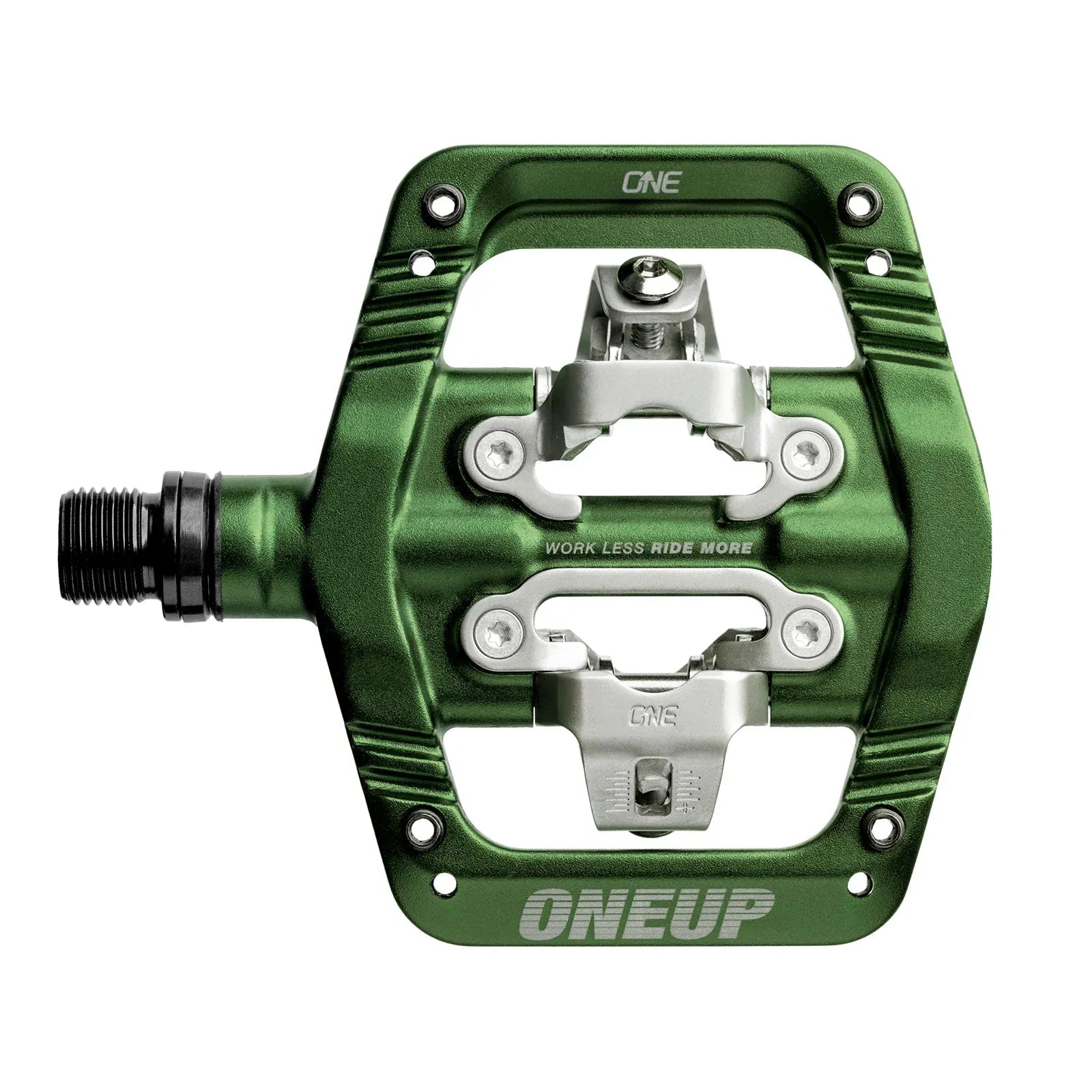

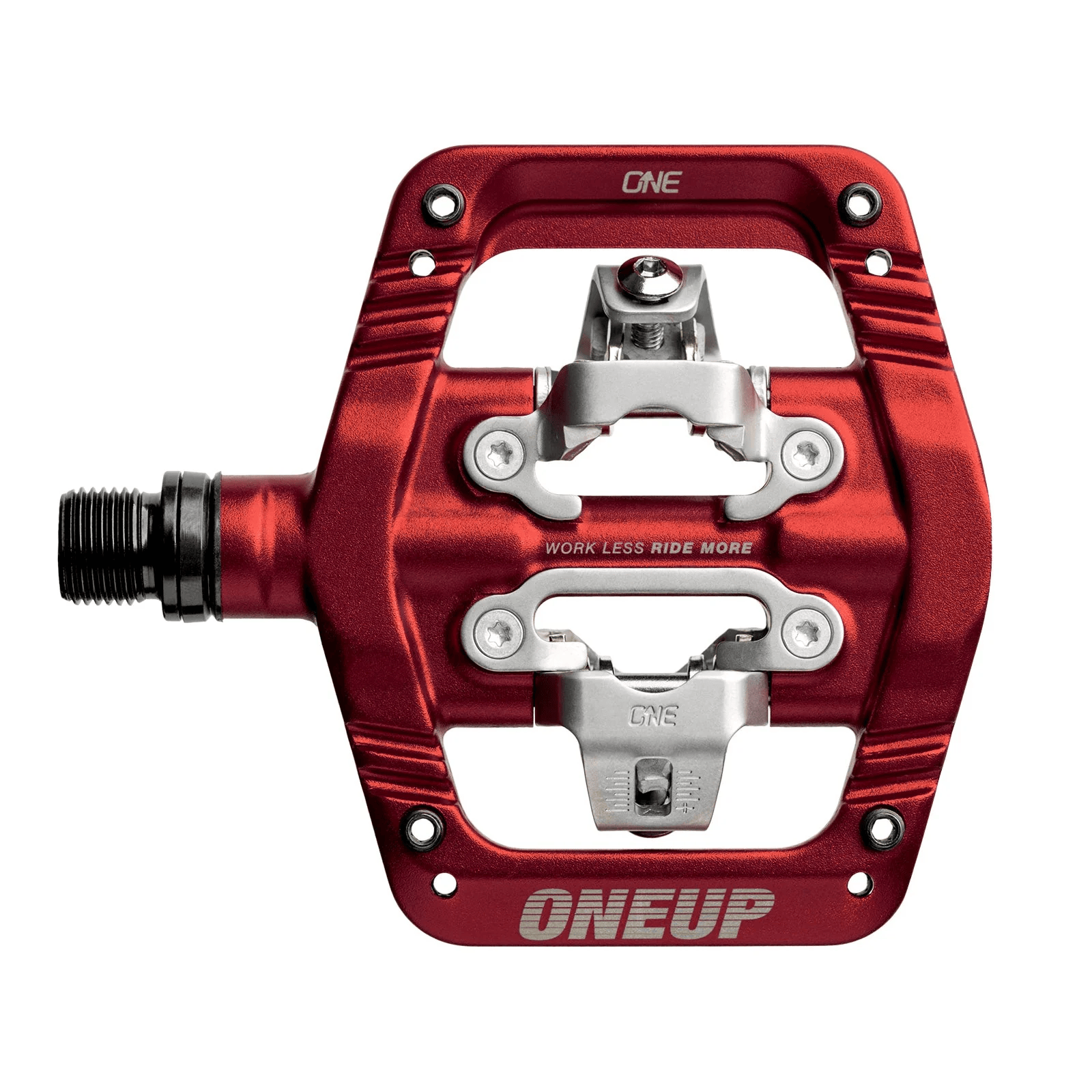

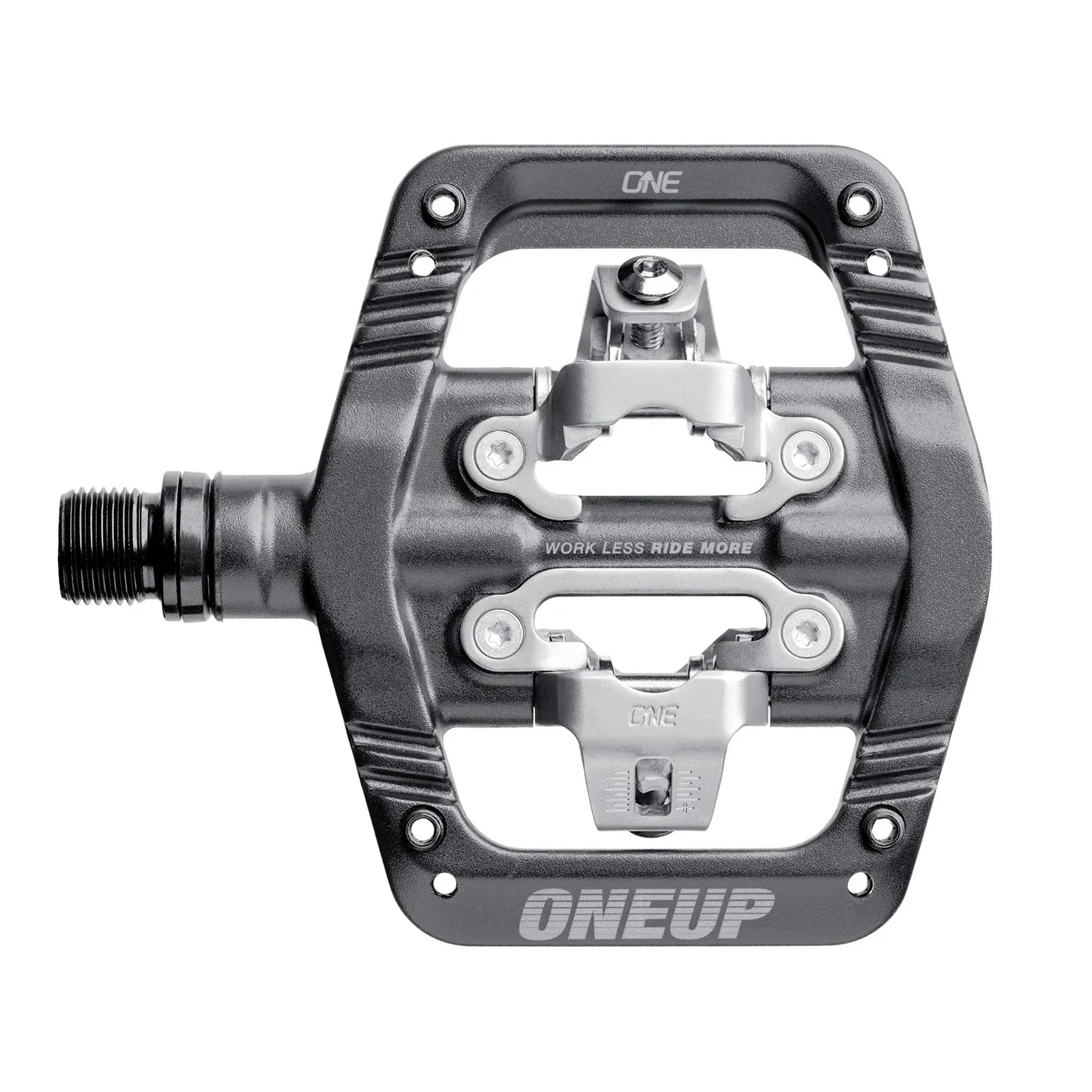

OneUp Clip Pedals are SPD-compatible clipless pedals built with a thin, low-profile body and a large platform for stable foot support. A custom stainless steel binding delivers a locked-in connection with minimal play, while wide-range tension adjustment lets riders dial in a secure but forgiving release feel.
An inboard igus bushing paired with three outboard sealed cartridge bearings supports the axle, which is built from Chromoly steel with a black ED coating for corrosion resistance. Hollow, removable M5x8mm pins fine-tune grip on each side, and included cleat spacers help fine-tune shoe fit at installation.
Quick Facts
| Feature |
Specification |
| Weight (pair, with pins) |
410g |
| Thickness |
14.4mm (body), 26.8mm (binding) |
| Platform Size |
80mm x 90mm (W x L) |
| Stance Width |
57.5mm |
| Float |
5° (12° release angle) |
