Ripley AF UDH SLX

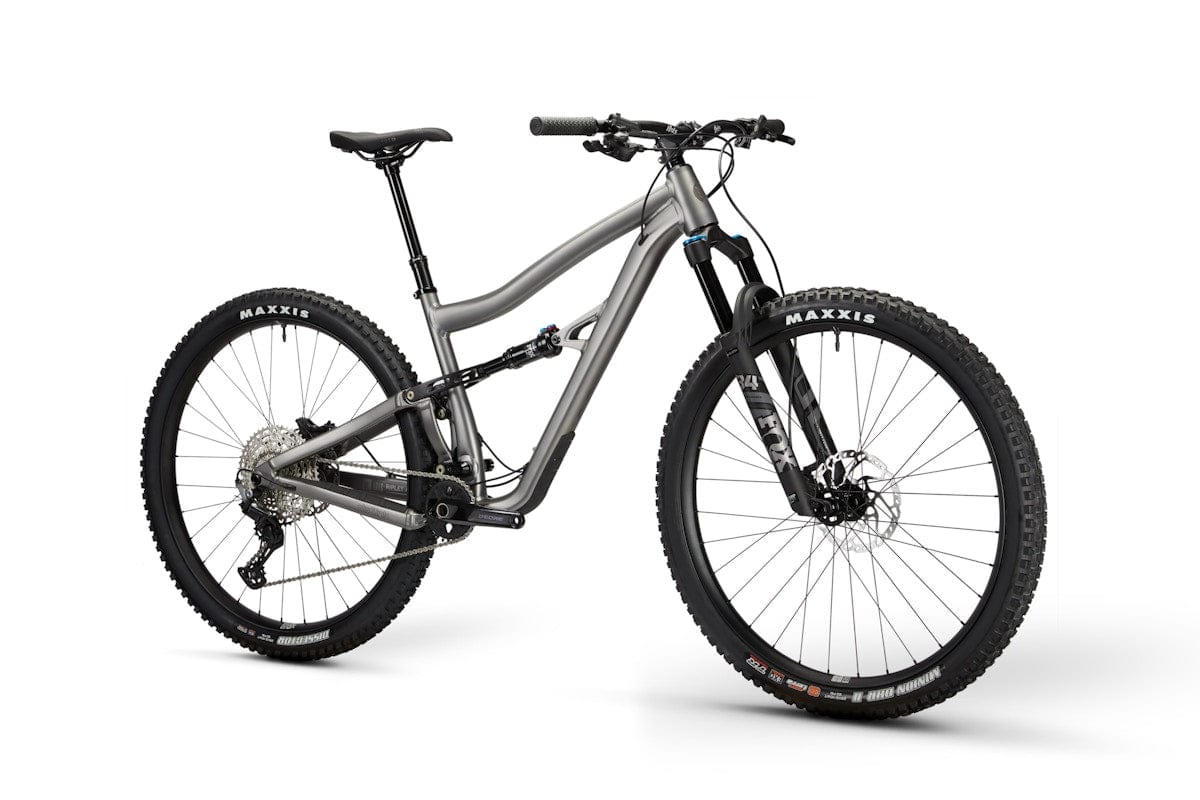

The Ibis Ripley AF UDH SLX is a responsive, short-travel trail bike with 120 mm of DW-Link rear travel, a 130 mm Fox Performance fork, and modern geometry for confident handling and efficient climbing. Outfitted with a Shimano SLX 12-speed drivetrain, Maxxis 29” tires, and a Bike Yoke dropper, it’s a fully capable alloy trail machine built to ride hard without the carbon price tag.
or with
View all locations
Product images may vary slightly from final specifications.
Need to Know
KEY FEATURES
PERFECT FOR
Why we like the Ibis Ripley AF UDH SLX
Modern Geometry, Precise Handling
A trail-friendly 65.5-degree head angle and short (44mm) offset 130mm fork combined with 29” wheels makes for a super planted but still playful front end feel. A 76-degree seat tube angle puts your power directly to the pedals, while the short chainstays and pedal-friendly DW-Link kinematics deliver that power without squandering a single watt.

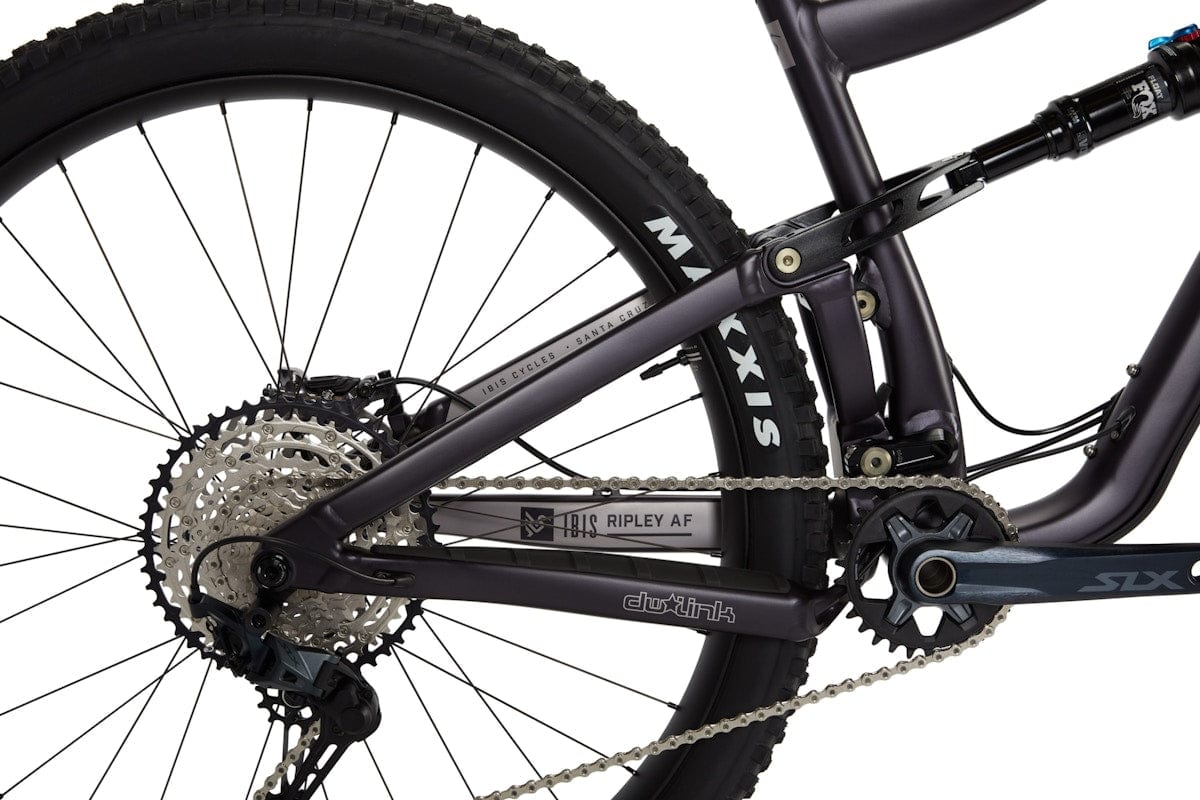

Universal Derailleur Hanger
The Ripley AF UDH features a UDH (Universal Derailleur Hanger) for maximum drivetrain compatibility and moves to a 55mm chainline.
Specifications
Frame
Aluminum
Fork
Fox Performance 34, 130 mm travel, 44 mm offset
Front Travel
130 mm
Shock
Fox Float DPS Performance, EVOL, 190 x 45 mm
Rear Travel
120 mm
Drivetrain
Shifter
Shimano SLX M7100 12-speed
Rear Derailleur
Shimano SLX M7100 Shadow Plus
Crankset
Shimano SLX or Praxis, 30T, 55 mm chainline (varies by availability)
Chain
KMC X12
Cassette
Shimano SLX 10–51T, 12-speed
Brakeset
Shimano SLX M7100, 2-piston
Rotors
180 mm front and rear
Bottom bracket
Threaded BSA (Shimano or Praxis, varies by availability)
Cockpit
Headset
Cane Creek 40 ZS44/ZS56
Handlebar
Ibis aluminum, 780 mm width
Stem
Ibis alloy, 40 mm (S/M) or 50 mm (L/XL)
Saddle
WTB Silverado, 142 mm
Dropper Post
Bike Yoke Revive (S: 125 mm, M: 160 mm, L: 185 mm, XL: 213 mm)
Dropper Lever
Bike Yoke Triggy
Grips
Lizard Skins Charger Evo
Wheels
Wheelset
Ibis S35 Aluminum, 29”, tubeless-ready
Front Axle
15 x 110 mm Boost
Rear Axle
12 x 148 mm Boost
Hubs
Ibis hubs (Shimano HG freehub)
Tires
Maxxis DHR II 29 x 2.4” WT, front and rear
