Fulcrum Wheelset Rapid Red 3 DB, HG11, C24 2-Way Fit AFS Parts - Wheels

Wheelset Rapid Red 3 DB, HG11, C24 2-Way Fit AFS

$1,200.00

The Fulcrum Rapid Red 3 DB is an aluminum gravel wheelset built for riders who explore B-roads, mixed surfaces, and quiet backcountry routes on drop bar bikes. A wide 24mm internal rim channel and 2-Way Fit Ready design support tubeless or clincher tires from 29mm up to 69mm, giving confidence on pavement and loose terrain alike. With a disc specific layout, AFS axle system, and cup and cone hubs, this wheelset suits gravel adventures, all-road rides, and light touring.

1
2
3
4
5
6
7
8
9
10 +

Quantity

From per month with

i or with

Online Low stock

Victoria Low stock

View all locations

Langford Out of stock

Vancouver Out of stock

Detecting your location…

Product images may vary slightly from final specifications.

Fulcrum Wheelset Rapid Red 3 DB, HG11, C24 2-Way Fit AFS

$1,200.00 CAD

Perfect For

Riders who want a durable aluminum gravel wheelset that handles pavement, loose B-roads, and ASTM Category 2 off-road sections without a weight or price penalty of carbon.

Features

2-Way Fit Ready: Lets you set the wheels up tubeless or run a classic clincher tire and inner tube on the same rim.
R2-Milling CNC Rim: A fully machined aluminum rim section keeps weight down while adding strength for mixed terrain riding.
Wide 24mm Internal Channel: Supports a broad tire width range from 29mm to 69mm for everything from fast gravel to demanding off-road sections.
AFS Axle System: A disc specific axle setup pairs with 12x100mm front and 12x142mm rear thru-axles for a secure, precise fit.
2:1 Spoke Lacing: The rear wheel uses a two-to-one spoke ratio to balance tension between the disc brake and drive sides.
Cup and Cone Bearings: Adjustable cup and cone hubs allow ongoing maintenance and fine tuning rather than simple bearing replacement.

Specifications

Discipline

Gravel (B-Road)

Wheel Size

700c

Rim Material

Aluminum (6082, T6 pre-aging)

Rim Depth

24mm (front and rear)

Internal Rim Width

24mm

External Rim Width

29mm

Tire Compatibility

2-Way Fit Ready; tubeless or clincher

Recommended Tire Width

29-69mm

Hubs

Fulcrum aluminum, oversize flange, cup and cone bearings

Front Axle

12x100mm thru-axle (HH12-100)

Rear Axle

12x142mm thru-axle (HH12-142)

Freehub

Shimano HG11

Brake Interface

Disc brake, AFS disc brake system

Spokes

24/24, stainless steel, double butted, straight pull, 2:1 ratio rear

Claimed Weight

1,740g (wheelset)

Max System Weight

120kg (cyclist, bike, equipment and luggage combined)

Why we like the Fulcrum Wheelset Rapid Red 3 DB, HG11, C24 2-Way Fit AFS

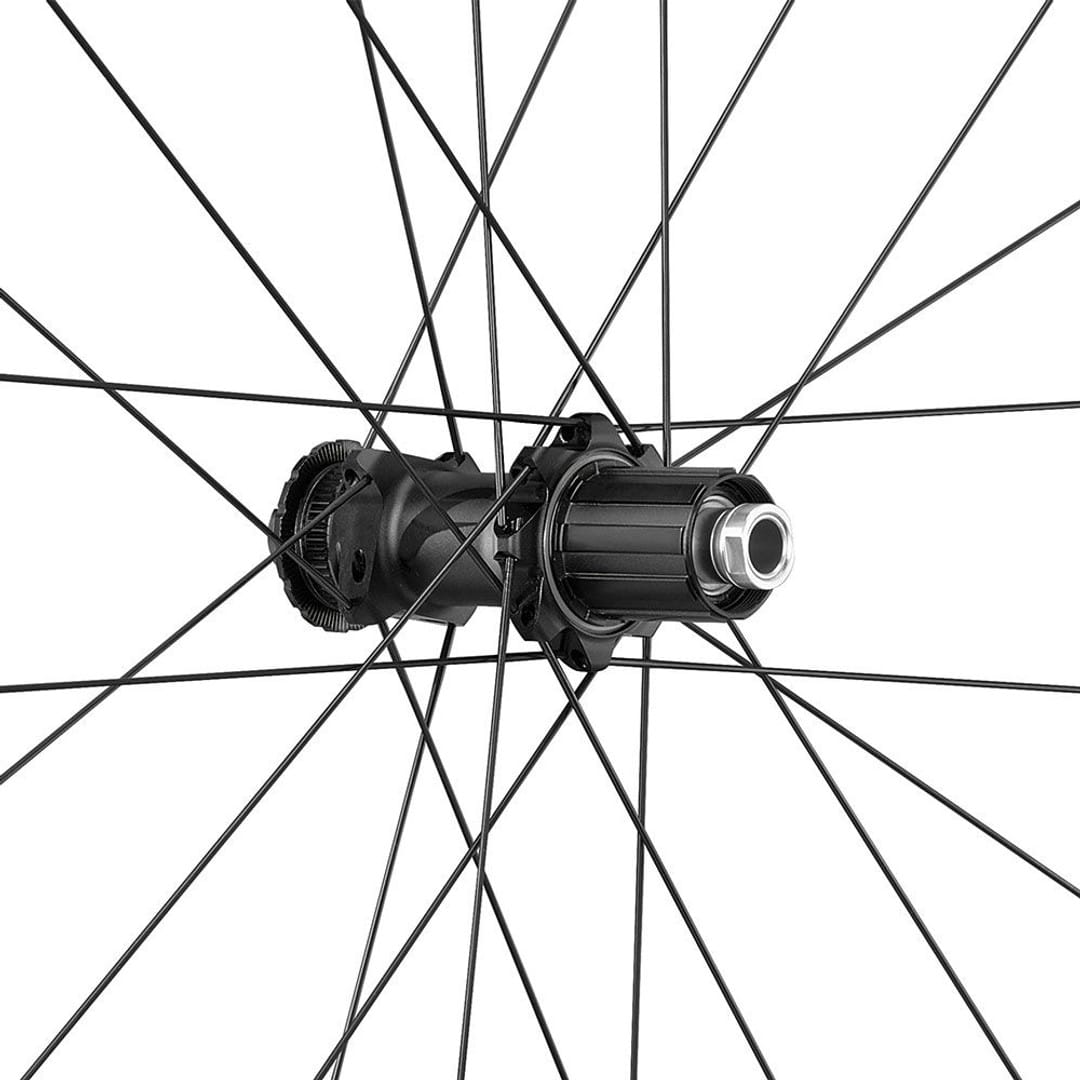

Aluminum Oversize Hubs

The front and rear hubs use an oversize flange aluminum shell with an adjustable cup and cone bearing system, so you can service and tune bearing play over the life of the wheel rather than replace sealed cartridges.

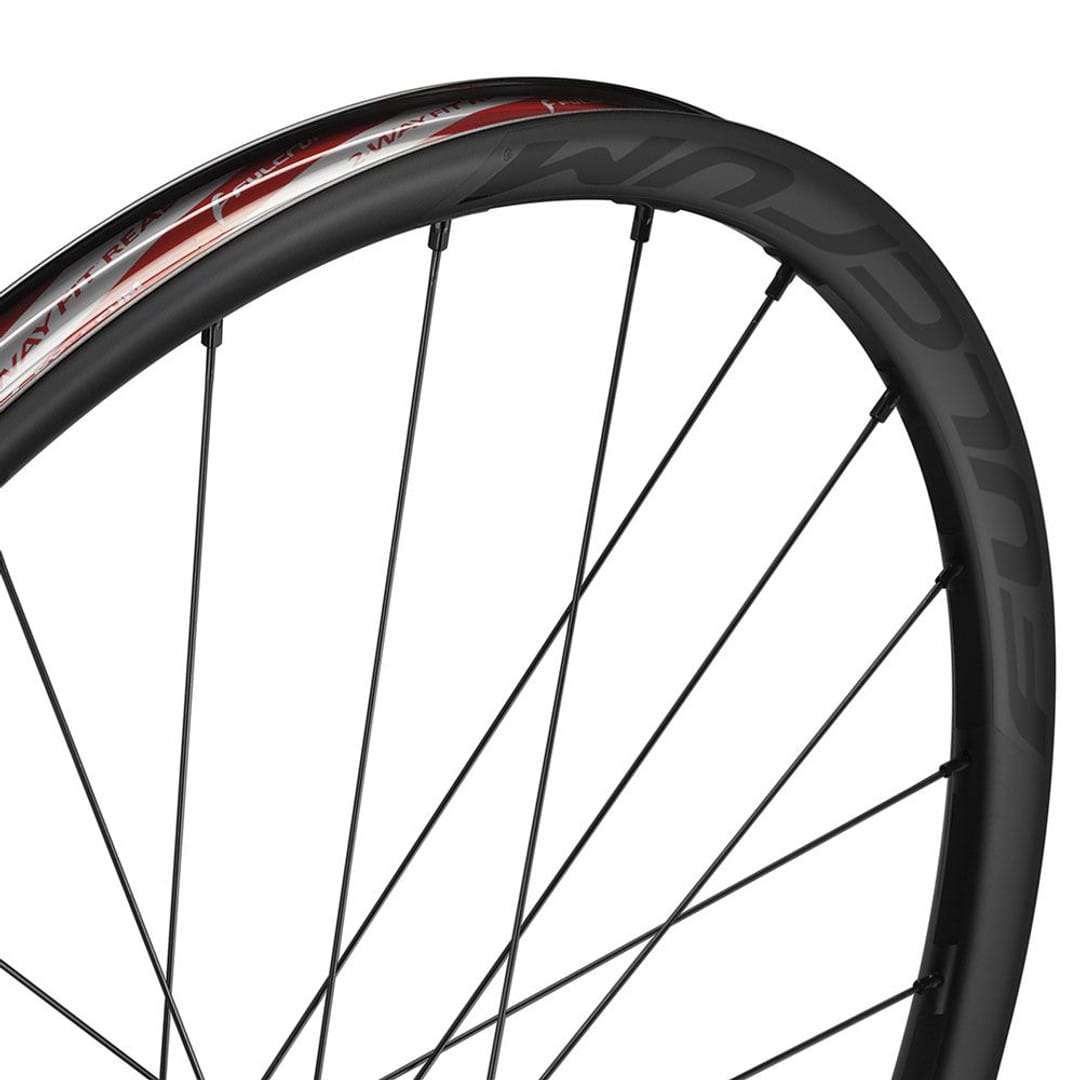

Disc Specific Spoke Lacing

Stainless steel double butted spokes use a straight pull, rounded profile, with the rear wheel built to a 2:1 two-to-one ratio that accounts for the uneven load disc brakes place on the wheel.

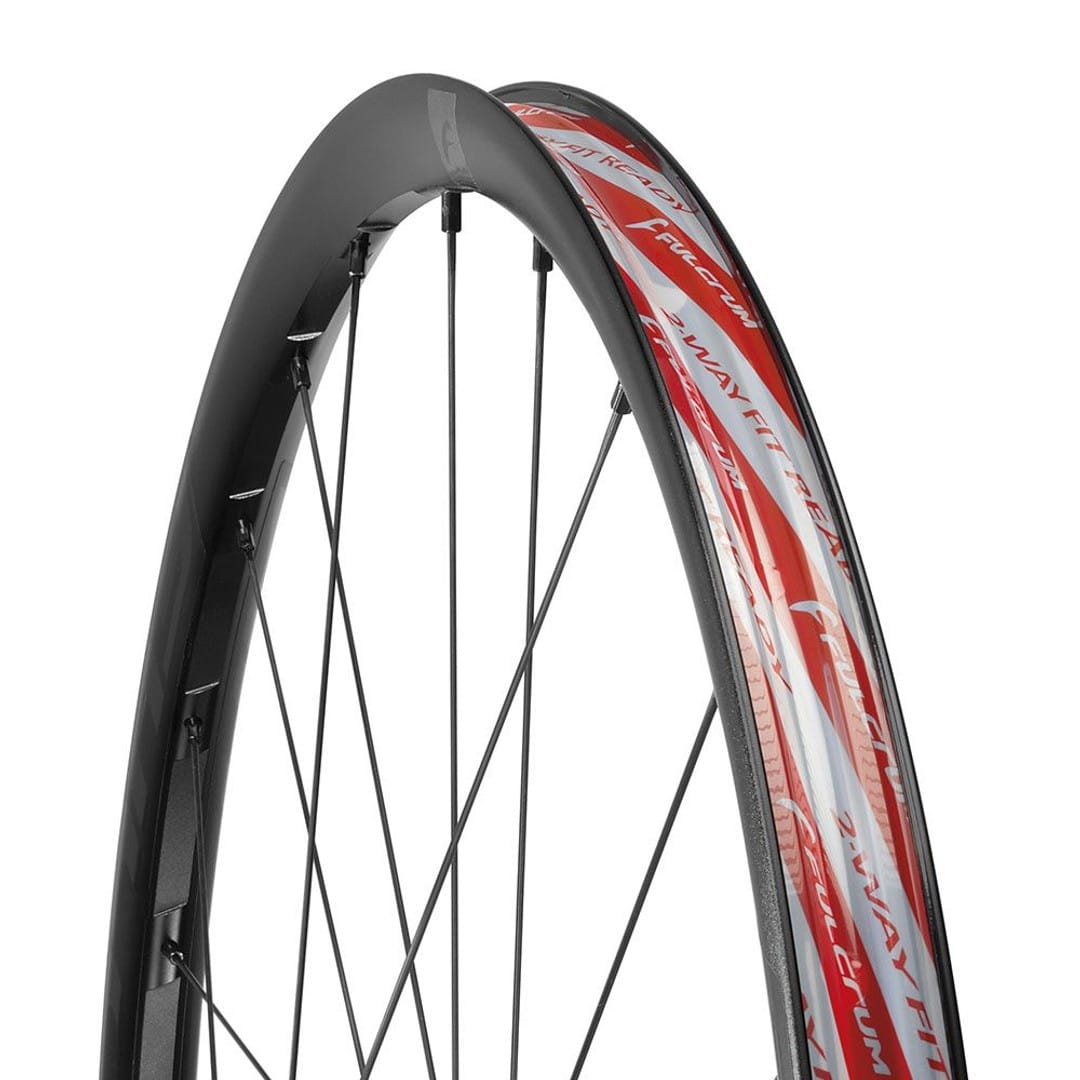

Low Profile Rim Depth

A 24mm rim height front and rear keeps the wheelset light and responsive, while the R2-Milling CNC machined construction and Rapid Red branding mark it as built for mixed terrain exploration.
