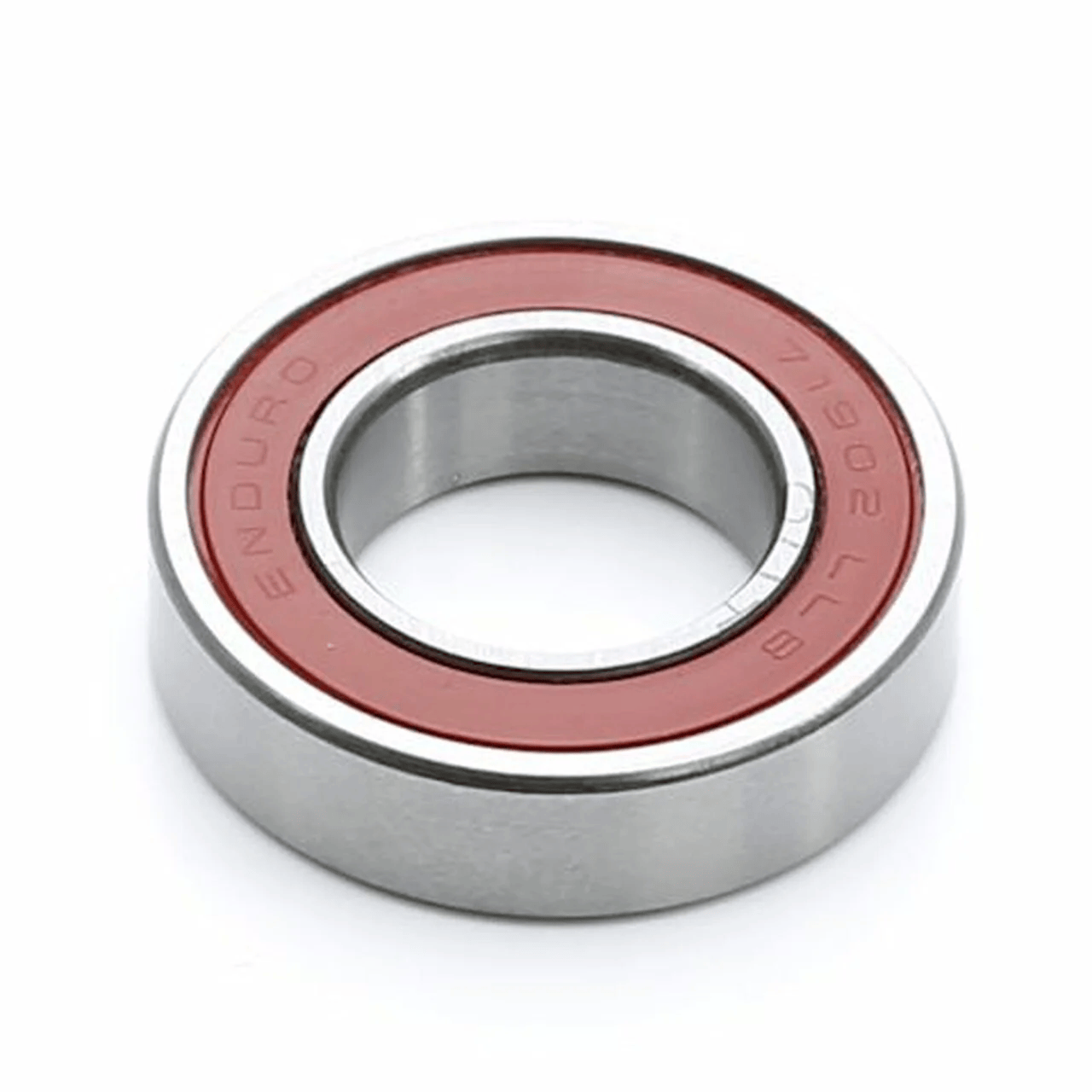

71902 (6902) ABEC 5 AC Bearing

Angular-Contact bearing generally used as a hub bearing, and can be used as a pivot bearing though the MAX-type version of this bearing is better suited for suspension use. This ABEC-5 bearing features deep-groove design races, with Grade 10 balls, dual-lip labyrinth (LLB) seals to withstand daily abuse of use and the elements, and to contain the 90% fill Mobilux NGLI 2 high pressure water proof synthetic grease. When properly installed (black seal facing in) and adjusted, Enduro Angular Contact (A/C) bearings engage all of the bearing's balls to spread the force over a larger surface area, decreasing friction, minimizing wear and increasing bearing life.

The Enduro line of bearings are available in high-carbon chromium steel, 440C stainless steel, ceramic-hybrid and XD15 with ceramic or stainless balls. Our bearings are always engineered with deepest groove races possible to accommodate the largest balls possible and feature dual-lip seals that ride in a micro-groove creating a full labyrinth to provide superior protection against the elements.

Static load - 558lbf / 2.482kN
Weight - 15g
