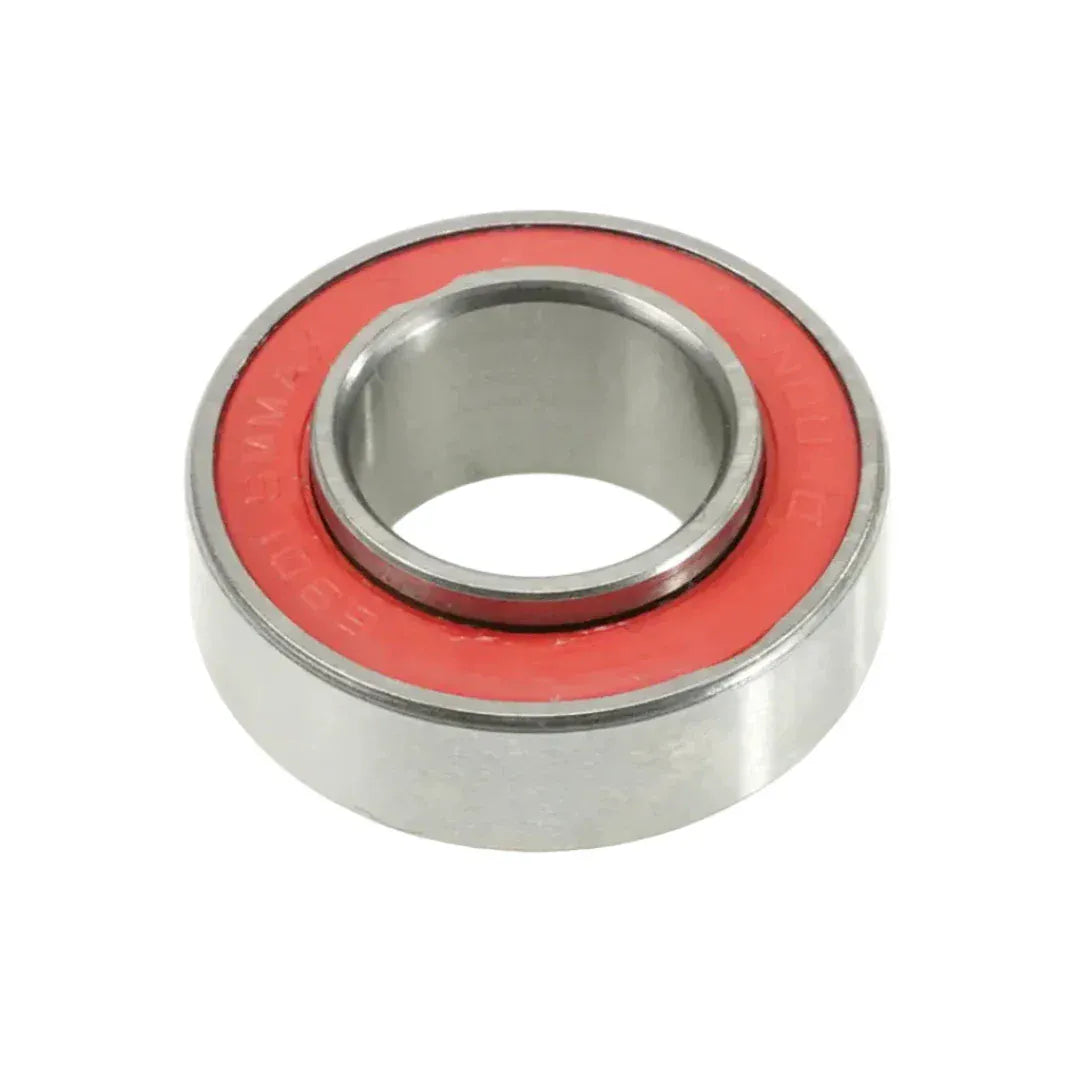

6901 SM MAX C-3 (38802) Bearing

The Enduro 6901 SM MAX C-3 (38802) is a specialized full-complement bearing designed for heavy-duty suspension pivots and high-torque hubs. By eliminating the ball retainer, this bearing maximizes the number of internal balls to provide the significantly higher load capacity required for aggressive riding.

Key Features

MAX Full Complement: Maximises internal ball count to increase load capacity by 35-40% over standard bearings.

C-3 Clearance: Engineered with a C-3 internal fit to allow for thermal expansion and ensure smooth rotation under heavy loads.

LLLU Seals: Utilises triple-lip seals to offer maximum protection against water and trail grit while retaining waterproof grease.

Technical Specifications

Dimensions: 12mm x 24mm x 6mm (Standard 6901 size).

Material: 52100 High-Carbon Chromium Steel.

Application: Specifically for suspension frame pivots and specific hubs.
