New Arrival
Seal Kit: 34 FLOAT NA2 Rebuild
$29.00

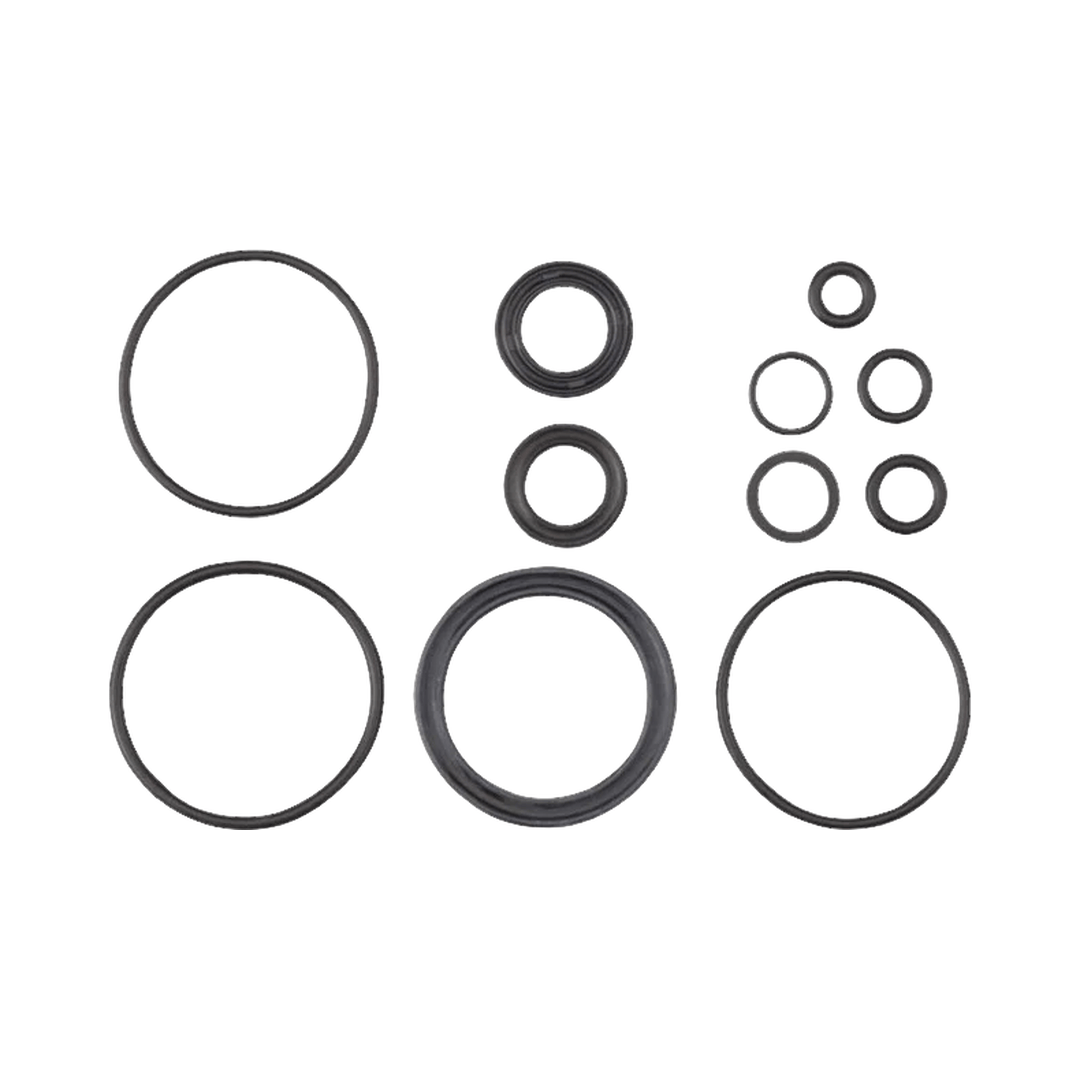

The Fox Seal Kit: 34 FLOAT NA2 Rebuild restores the air spring seals in Fox 34mm forks from model year 2016 onward. This kit contains the wiper seals, O-rings, and backup rings needed to refresh the FLOAT NA2 air spring assembly, helping riders maintain smooth travel and consistent air pressure retention after regular trail use.
Fox recommends a full air spring service every 125 hours of riding to keep the FLOAT NA2 system performing as intended. During rebuild, the air side bore measures 1.214 inches with a 1.208 inch piston, and bath oil volume depends on travel length: shorter travel forks use more fluid than longer travel models.
Quick Facts
| Feature | Specification |
|---|---|
| Compatibility | Fox 34mm forks with FLOAT NA2 air spring, model year 2016 and newer |
| Service Interval | 125 hours recommended |
| Upper Tube Bore | 1.214 in (FLOAT NA2/CSU) |
| Piston Diameter | 1.208 in outer diameter (FLOAT NA2/CSU) |
| Recommended Bath Oil | 25 ml (110-120mm travel) or 10 ml (130-160mm travel) of 20wt Gold suspension fluid on the air side |
